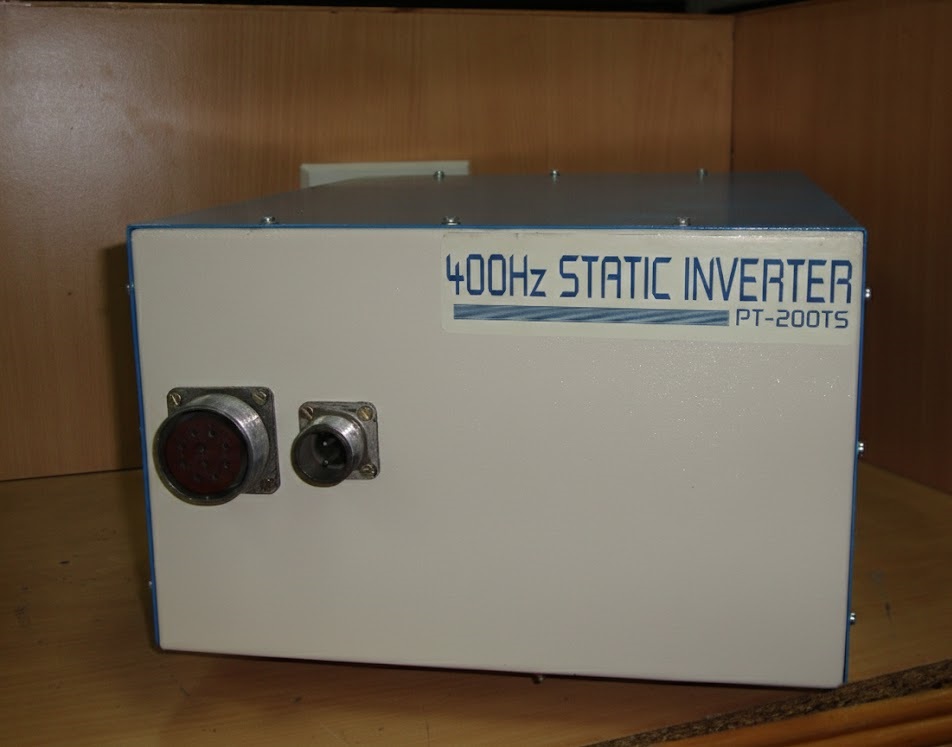

400 Hz Inverter
The 400 Hz Inverter is a compact, high-performance static power conversion system developed to deliver reliable AC power in demanding aerospace, defense, and specialized industrial environments. The system operates from a 24 V DC input source and generates a regulated 115 V, 400 Hz AC output.
The inverter is built around a TI DSP-based real-time control platform, enabling precise waveform synthesis, fast transient response, and deterministic protection handling. Both the power stage and firmware architecture have been designed with a strong focus on robustness, reliability, and long-term maintainability.
With a rated output power of 1.2 kW and an overall system weight of approximately 2.2 kg, the inverter achieves an excellent power-to-weight ratio, making it suitable for applications where size, weight, and performance are critical constraints.
Key Features
- 24 V DC input with regulated 115 V AC, 400 Hz output
- Rated output power up to 1.2 kW
- TI DSP-based real-time control architecture
- Low-distortion sinusoidal output waveform
- Integrated protection and fault handling mechanisms
- Compact, rugged enclosure with approximate weight of 2.2 kg
Electrical & System Specifications
| Input Voltage | 24 V DC (nominal) |
|---|---|
| Output Voltage | 115 V AC |
| Output Frequency | 400 Hz |
| Rated Output Power | 1.2 kW |
| Control Platform | Texas Instruments DSP |
| Communication Interfaces | CAN, RS-422 |
| Firmware Upgrade | Supported |
| Approximate Weight | 2.2 kg |
Communication & Firmware
The inverter supports CAN and RS-422 communication interfaces for configuration, monitoring, diagnostics, and system-level integration. These interfaces allow real-time status reporting and fault analysis in distributed control architectures.
A firmware upgrade mechanism is provided to enable feature enhancements, control algorithm improvements, and long-term product support without requiring hardware modifications.
Reliability & Rugged Design
Reliability and ruggedness were primary design objectives for this inverter. Component selection, thermal management, PCB layout, and control firmware structure have been optimized for stable operation under continuous load and harsh operating conditions.
The system is well suited for mission-critical applications where consistent power quality and dependable operation are essential.
Typical Applications
- Aerospace and avionics ground support systems
- Defense and military power systems
- Specialized industrial equipment
- Laboratory and automated test benches
